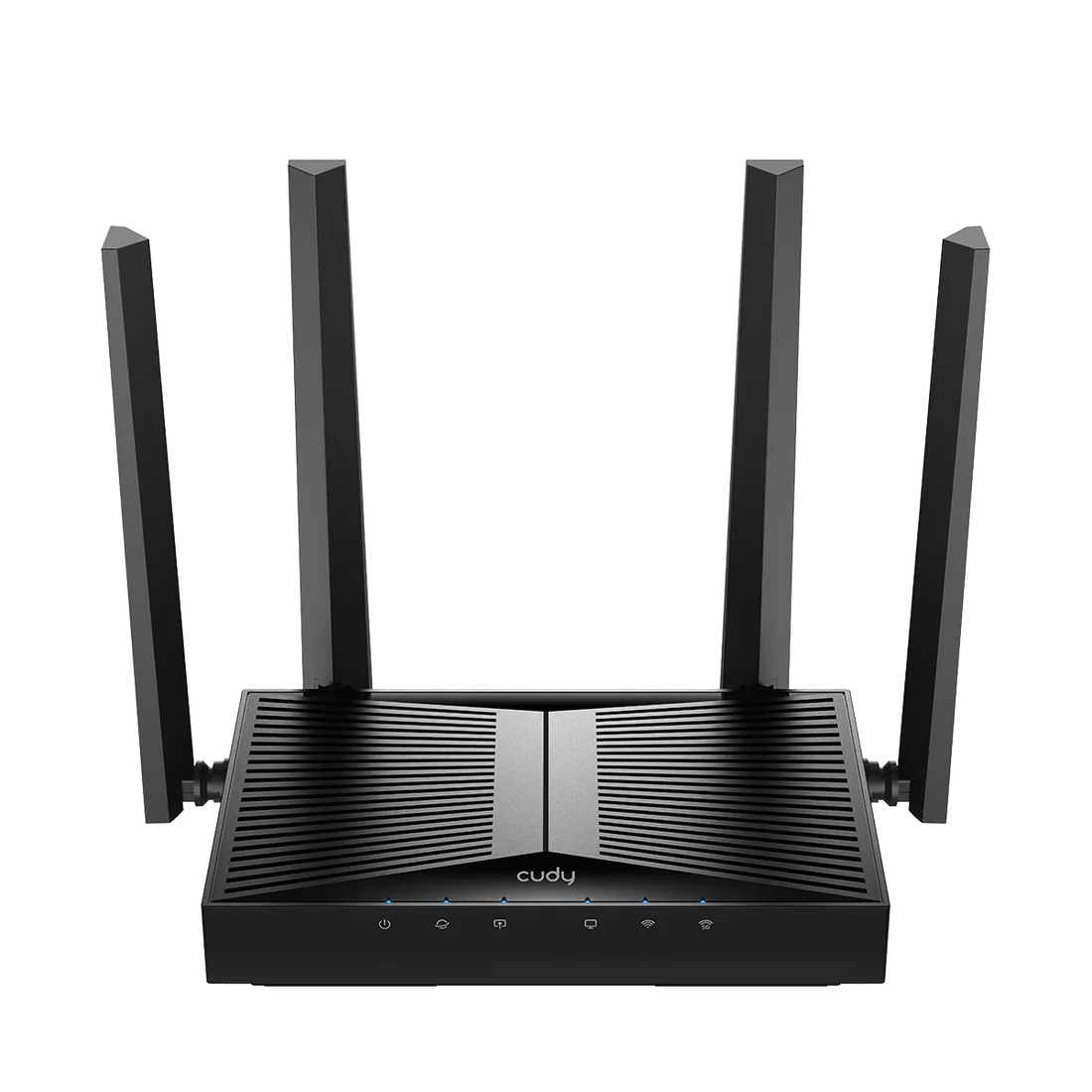

A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and five Gigabit ports, catering to gaming and entertainment scenarios. Broadcom 2 GHz Quad-Core CPU 4-Stream Dual-Band Wi-Fi...
A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and five Gigabit ports, catering to gaming and entertainment scenarios.
Broadcom 2 GHz Quad-Core CPU
4-Stream Dual-Band Wi-Fi 7
2882 Mb
Model Version
WR3600 1.0
CPU
CPU Details
2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage
Flash/ROM
128 MB (1 Gbit) NAND
DDR/RAM
512 MB (4 Gbit) DDR3L
Wireless
5 GHz Wi-Fi Speed
2882 Mbps
2.4 GHz Wi-Fi Speed
688 Mbps
5 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams
2T2R (2×2 MIMO)
Wi-Fi Antennas
4× Fixed
5 GHz Antenna Gain Max
5.5dBi
2.4 GHz Antenna Gain Max
5.4dBi
FEM or PA/LNA
5 GHz: 2× External
2.4 GHz: 2× Internal
Beamforming
True
Range Performance
Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance
Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Interfaces
Gigabit RJ45 Ports
5
Ethernet Notes
1× WAN port, the rest are LAN ports
LED
Power
Internet
WAN
LAN
2.4 GHz Wi-Fi
5 GHz Wi-Fi
Physical Buttons
WPS Button
Reset Button
Power Input
DC Jack
Power
Power Methods
DC
DC Input
12V 1A
Power Adapter
Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
Max Power Consumption (W)
9W
Reliability
Environment
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing
Certifications
FCC, CE
Mechanical
Installation
Desktop
Wall-mount
Dimension
Device: 183.3×109×38 mm 7.22×4.29×1.5 inches Each Antenna: 175 mm 6.89 inches
Product Weight
333.5 g (11.76 oz.)
Package Content
WR3600
Power Adapter
Ethernet Cable
Installation Guide
Ordering Information
Retail Package Weight
ZH: 725.0 g (25.57 oz.)
Retail Package Dimension
330×256×60 mm 12.99×10.08×2.36 inches
Units per Carton
10
Carton Dimension
52.8×31.7×34.7 cm 20.79×12.48×13.66 inches
Carton Gross Weight
ZH: 8.1 kg (17.86 lbs)
Carton Net Weight
ZH: 7.3 kg (16.09 lbs)
ps + 688 Mbps Wi-Fi1
5× Gigabit Ethernet Ports
Covers 130 m² (1,400 ft²)2
VPN Server and Client
Cudy App, Cloud Control
