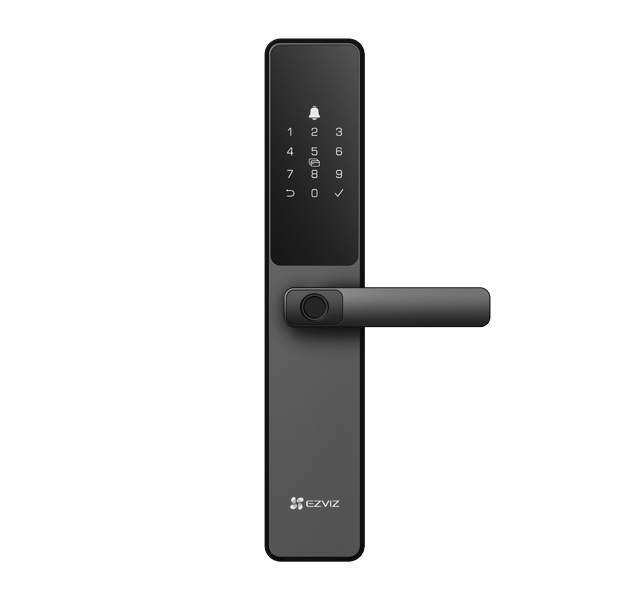

Model CS-DL05-R100-WBCP-GR(M)/CS-DL05-R200-WBCP-GR(M) Material and Specification Panel Material Aluminum alloy Panel Size 360 × 67 × 27 mm (14.17 × 2.64 × 1.06 inch) Color Metallic grey Lock Body Type Lift-up...
Fingerprint, passcode, proximity card, mechanical key, bluetooth key via EZVIZ App, temporary codes, remote unlock
User Capacity
50 pcs
Fingerprint Capacity
50 pcs
Passcode Capacity
50 pcs
Card Capacity
50 pcs
Communication Methods
2.4GHz Wi-Fi, Bluetooth
Temporary Access Codes
Supports
Anti-Peeping Codes
Supports (Up to 20 digits)
Low Battery Warning
Supports
Privacy Mode
Supports
User Management
Supports
Real Time Notification
Supports
Anti-Test Locking
Supports
Anti-Tamper Alarm
Supports, enter error 5 times within 5 min, locking 3 min.
Remote Control
Supports
Child Safety Lock
Supports
Voice Control
Soon Supports (Google Assistant / Amazon Alexa)
Supported Door Thickness
30-110 mm
Working Temperature
-25°C~70°C
Operating Humidity
10%~95%
In the box
In the box
- DL05 Smart Fingerprint Lock
(Front Panel + Rear Panel + Hole Template)
- Lock Body
- Standard Screw Bag
- Lock Body Screw Bag (2)
- Locating Screw Bag
- Reversing Screw (2)
- AA-Sized Battery (8)
- Mechanical Key (2)
- Square Rod
- Proximity Card (2)
- Silicon Plug (For Rear Panel)
- Regulatory Information
- Quick Start Guide
Certifications
Certifications
CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE / UKCA
