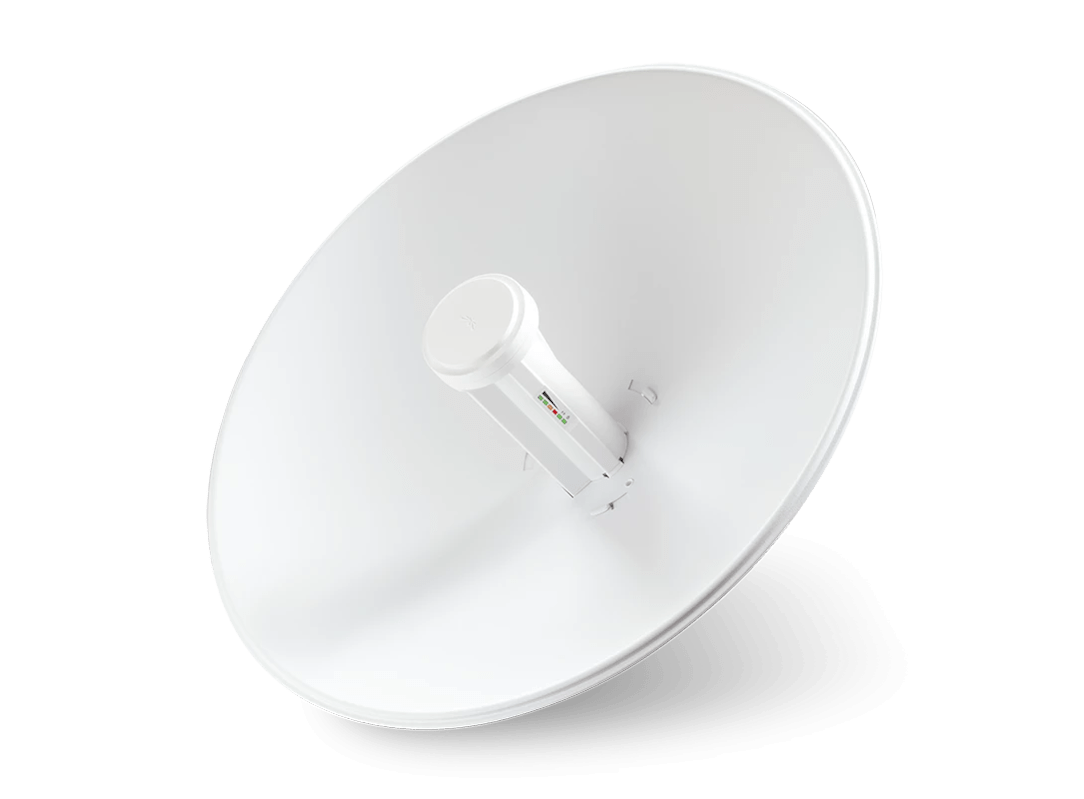

PowerBeam M5

Regular price 135,000
PBE-M5-400 Dimensions 420 x 420 x 275 mm (16.54 x 16.54 x 10.83") Weight (Mount Included) 1.753 kg (4.789 lb) Gain 25 dBi Networking Interface (1) 10/100/1000 Ethernet Port Enclosure...
PowerBeam M5
135,000
PBE-M5-400
Dimensions 420 x 420 x 275 mm (16.54 x 16.54 x 10.83")
Weight (Mount Included) 1.753 kg (4.789 lb)
Gain 25 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Enclosure Outdoor UV Stabilized Plastic
Max. Power Consumption 8W
Max. TX Power 26 dBm
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Survivability 200 km/h (125 mph)
Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Mounting Pole Mounting Kit Included
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4 Equivalent: MIL-STD-810 G Method 506.5
Operating Temperature -40 to 70° C (-40 to 158° F)
